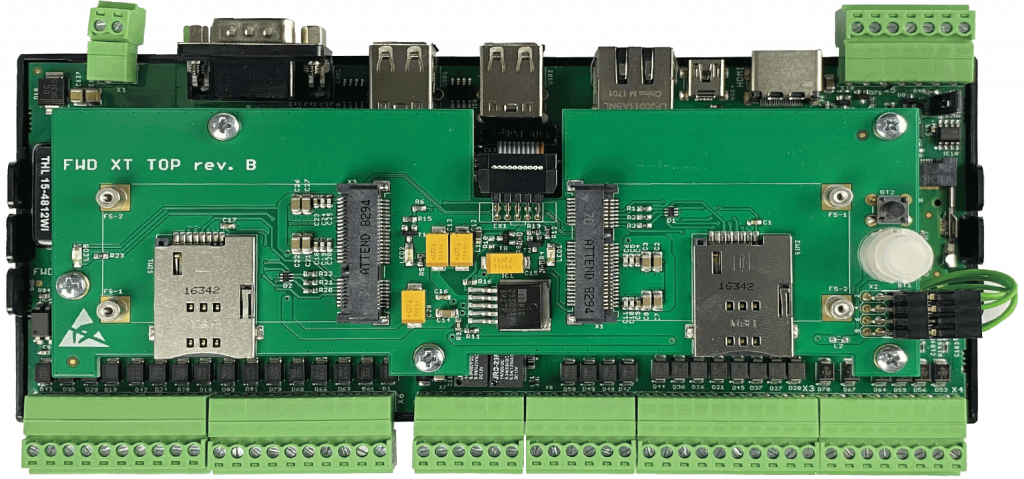

IoT Catalyst Edge is an industrial IoT Gateway computer designed for use in control and automation systems. Powered by an ARMv8 Processor and Linux OS and wide an ultra-wide range supply-voltage is the right choice for any challenging application.
Highlights
-
1
Powered by ARM Processor
BCM2837 processor
1Gbyte RAM
4Gbyte eMMC Flash -
2
Hardware Security
HW Crypto Element to securely store private keys of digital certificates, making sure they never leave the gateway -
3
A lot of inputs and outputs
16 x digital opto-isolated inputs 4 x dry contact inputs
2 x Relays
8 x open drain outputs
4 x analog inputs 0-10V 2 x
analog outputs 0-10V -
4
Rich set ofinterfaces
4 x USB 2.0 4 x USB, CANbus,1-Wire, RS-232 ,RS-485 ,Ethernet, HDMI ,2 X mPCIE for GPRS/3G/4G/LTE, ,LoRa, NB-IoT, WM-BUS -
5
Real Time Clock
Real Time Clock with supercapacitor backup -
5
Robust design
Two watchdogs Meets requirements of EN 61326-1:2013 for basic and industrial electromagnetic environments
Reliable Performance
Powerful and efficient, Quad core Cortex A53, with high performance for intensive workloads. Soldered-down eMMC storage.
HW Crypto Element (TPM – Trusted Platform Module), technology which provides standard cutting-edge security features, to securely store private keys of digital certificates, making sure they never leave the gateway, protecting system integrity and authenticity against unauthorized manipulations.
Long-term Availability: Designed for markets and use-cases where long-term availability and support is a must have requirement.
IoT Ready
Connection-oriented: Two modular radio interfaces for a breadth of connectivity options: carrier certified LTE configurations with 2G/3G fallback, for multiple geographies, WI-FI, BLE, LoRa, SigFox, W-Mbus, EnOcean, ZigBee, etc..
Fast Ethernet and Fieldbus interfaces, including CAN bus ports, optoisolated digital I/Os, protected USB and isolated RS-485, supporting Modbus, S7, OPC UA, and many more protocols.
Lots of inputs and outputs, to interface all kind of sensors and actuators, with two power supply port available (5V / 12V).
Industrial Grade
Industrial operating temperature, high efficiency isolated DC/DC converters, with wide range power supply and transient protection. Integrated UPS, supercapacitor based, with safe shut down procedure, which includes two watchdogs systems.
Optoisolated analog IN and digital I/Os, protected USB, protected and isolated serial ports. DIN bar and wall mount.
Meets requirements of CE EN 55011 for domestic and industrial electromagnetic environments.
